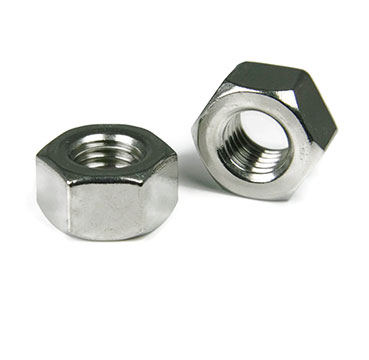

SS 904L Nuts
SS 904L Nuts are female mating fasteners for bolts, screws, stud bolts and threaded rods, together fixing a bolting joint. Common types of SS 904l nuts includes, hex nuts, heavy hex nuts, square nuts, hex thin jam nuts, heavy hex thin jam nuts, long nuts, coupling nuts, hex weld nuts, castle nuts, lock nuts, cap nuts, hex flange nuts, square thin nuts, square weld nuts, lifting eye nuts, wing nuts, t-slot nuts, nylon insert jam nuts, k lock nuts, 2 way nuts, all metal lock nuts, 12 point flange nuts, etc.
Anand Steels manufactures and supplies SS 904L nuts in metric and imperial sizes. SS 904L nuts are manufactured to ASTM A182 F904L forged material. SS 904L nuts are manufactured from ASTM A276/A276M and A479/A479M bar stock specifications. These stainless steel 904L nuts are constructed with dimensions referenced to various ASME/DIN/ISO/UNI/PN/BS and BIS standards. SS 904l nuts are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Nuts, see below details.
- Categories: hex nuts, heavy hex nuts, square nuts, hex thin jam nuts, heavy hex thin jam nuts, long nuts, coupling nuts, hex weld nuts, castle nuts, lock nuts, cap nuts, hex flange nuts, square thin nuts, square weld nuts, lifting eye nuts, wing nuts, t-slot nuts, nylon insert jam nuts, k lock nuts, 2 way nuts, all metal lock nuts, 12 point flange nuts, etc.
- Sizes: M1 to M180 in Metric & #1 to 8” in Imperial.
- Threads: Metric coarse, fine, extra fine, imperial coarse, UNC, UNF, UNEF, 8UN Fixed, BSW, BSF and ACME.
- Construction: Cold Forged, Hot Forged, Bar Stock Machined.
- Dimensions & Tolerances: ASME / DIN / ISO / UNI / PN/ IFI / BIS / BS / EU and CSN
- Material Specifications: ASTM / ASME A182 F904L, ASTM A276/A276M and A479/A479M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Nuts
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Nuts
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Nuts
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
