SS 904L Forged Rings

SS 904L Forged Rings

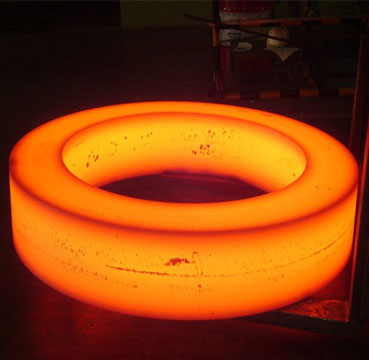

SS 904L Forged Rings are hot forged and seamlessly rolled rings, further machined for use as a key component in wind mills, paper mills, engines and other extreme environments. SS 904l forged and seamless rolled rings are stronger compared to other forms of formed metal and also being cost effective as to other means of manufacturing.

Anand Steels is a manufacturer and supplier of SS 904l forged and seamless rolled rings. We can offer these 904L forged rings in variety of diameters and thickness in proof machined and finished sizes. These 904l forged rings are fully compliance to ASTM A182/A182M F904L material specifications. Stainless steel 904l forged rings are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.

For more information on SS 904L Forged Rings, see below details.

Chemical Requirements for SS 904L Forged Rings

Elements Composition, %
Carbon (C) 0.02 Max
Manganese (Mn) 2.00 Max
Phosphorus (P) 0.04 Max
Sulfur (S) 0.03 Max
Silicon (Si) 1.00 Max
Chromium (Cr) 19.00 – 23.00 Max
Nickel (Ni) 23.00 – 28.00 Max
Molybdenum 4.00 – 5.00 Max
Copper (Cu) 1.00 – 2.00 Max
Nitrogen (N) 0.10 Max

Mechanical Requirements for SS 904L Forged Rings

Elements Composition
Tensile Strength, min ksi [MPa] 71 [490]
Yield Strength, min ksi [MPa] 31 [215]
Elongation in 2 inch or 50mm (or 4D), min % Longitudinal 35
Transverse 25

Applications for SS 904L Forged Rings
